How to create a flowchart from Excel
How to turn an Excel list of process steps into a flowchart: get the columns right, use row numbers as connections, then add shapes and lanes. Watch the diagram appear one column at a time.
A flowchart can be generated directly from a spreadsheet of steps: one row per step, a column for the row number each step leads to, and optional columns for shape and owner.
The short version
- One row per step. The row number is the step's identity.
- "Line to" takes row numbers, comma-separated when a step leads to several places.
- "Line text" labels the branches: Yes, No, Over threshold.
- "Shape" turns a rectangle into a decision, a start or an end.
- The two lane columns turn the flowchart into a swimlane diagram.
Put the spreadsheet to work
From spreadsheet columns to a flowchart
The same rows at four stages of completeness. Open the spreadsheet panel to see which column is being filled in.
Paste the steps
One step per row in Box text and nothing else. This is what your existing spreadsheet already looks like: a list of boxes with no relationships between them, which is why it has never told anybody anything they did not know.
Fill in "Line to"
Type the row number each step leads to and the arrows appear. Row 5 pointing at 6 and 7 forks the flow. This single column is the difference between a list and a process, and it is the column that reveals a step nobody could say what happened after.
Add shapes and branch labels
Set the severity row's Shape to Decision and it becomes a diamond; put "Yes" and "No" in Line text and each exit says which case it is. Now the chart can be read by someone who was not in the room when it was written.
Add the lane columns
Horizontal lane holds the phase, Vertical lane holds the owner, and the flat flowchart becomes a swimlane diagram: same rows, two more columns. The handoffs between Customer Service, Quality and the department owner were in the sheet all along; they just had nowhere to show.
Why the spreadsheet is already the flowchart
Most processes are already written down, and they are written down in a spreadsheet. A tab with one step per row, a column of owners, maybe a column called "next" that somebody stopped filling in. The gap between that spreadsheet and a flowchart is not information: it is only that a spreadsheet cannot show you which step leads where, so nobody can see the branch that has been sitting in column D for a year.
QueryChart closes that gap by treating the spreadsheet as the source rather than as an import. The editor is a table: one row per box, a Box text column for the label, a Line to column holding the row number the step connects to, and Line text for the branch label. Add Shape to get decisions and terminators, add the two lane columns to get swimlanes. The diagram is a rendering of that table, so editing either one is editing the same chart.

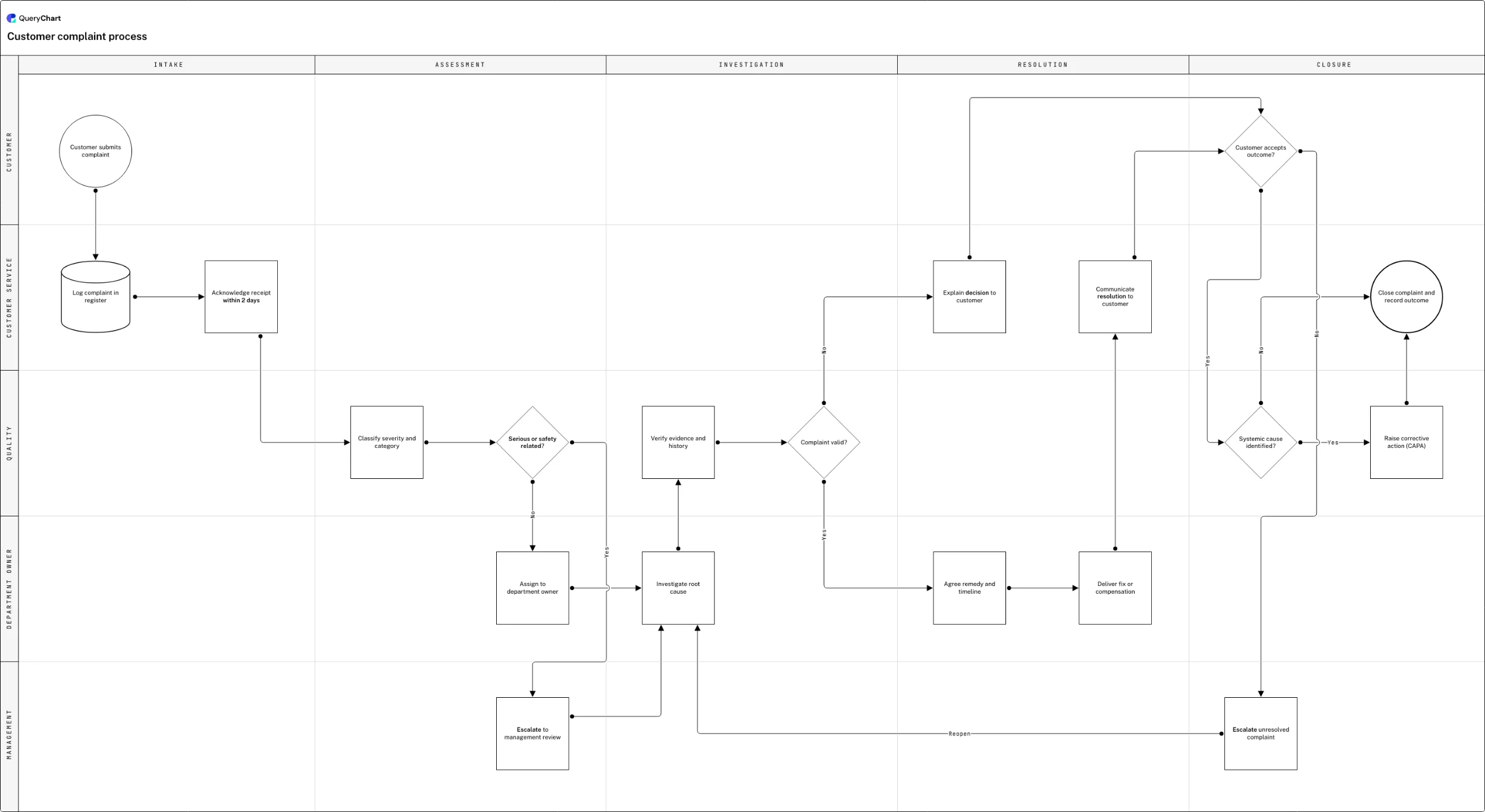

The example below builds a customer complaint process one column at a time. Open the spreadsheet panel underneath and watch which column each stage fills in: labels first, then connections, then branches, then owners. It is the exact order to do it in with your own sheet.
How it works
Get your spreadsheet into one row per step
Before anything else, make sure each row is a single action. Merged cells, a header block above the data, and one row holding three steps are the three things that turn a clean conversion into a cleanup job. Keep one sheet, one table, no blank separator rows.
Number the rows and add a "next step" column
The row number is the step's identity, so add a column holding the number of the step that follows. Where a step forks, put both numbers separated by a comma. This is the only genuinely new information you have to supply, and filling it in is what surfaces the steps whose successor nobody actually knows.
Paste it into QueryChart
Open a new chart and paste the rows into the spreadsheet editor: Box text for the label, Line to for the next-step numbers. The diagram renders as you paste, and the edges route themselves; there is no layout step and nothing to drag into place.
Mark the decisions
Set the Shape column to Decision on every row that asks a question, and Start and End on the first and last. Then put the branch labels in Line text, comma-separated in the same order as the Line to numbers, so "6,7" with "No,Yes" labels the two exits correctly.
Add owners and phases
Fill the Vertical lane column with the role that performs each step and the Horizontal lane column with the phase it belongs to. The flowchart becomes a swimlane diagram immediately, and any step whose owner you cannot name is worth a conversation before it goes any further.
Fix what the diagram exposes
Converting almost always reveals two things: a step with no successor, and a decision with only one exit. Both were invisible in the spreadsheet and both are obvious on the canvas. Correct them in the rows, then share the chart so the fixed version is the one people work from.
Mistakes to avoid
Merged cells and multi-row headers
Anything that is not a plain rectangular table will paste wrong. Flatten the sheet first: one header row, one row per step, no merges.
Referring to steps by name
Connections work on row numbers, not labels. Two steps called "Review" are indistinguishable by name and unambiguous by number, which is why the number is the identity.
Branch labels in the wrong order
Line text is matched to Line to positionally. If Line to reads "6,7", then Line text "No,Yes" puts No on the arrow to 6. Getting these crossed produces a chart that is confidently wrong.
Keeping the spreadsheet as the master afterwards
Once the chart exists, edit the chart. Maintaining the original sheet in parallel recreates exactly the drift you converted to get rid of.
Turn your spreadsheet into a flowchart
Open the example as your own chart to see the columns filled in, then paste your own rows over them.
Related guides
Drawing quantities instead of steps?
A flowchart documents the steps of a process. If your spreadsheet instead holds quantities moving between stages, such as sales by channel and region, a Sankey diagram shows the amounts as band widths.
Frequently asked questions
Can Excel create a flowchart by itself?
Only by hand. Excel can draw SmartArt and shapes on a sheet, but those are drawings that happen to sit on a grid: they are not generated from your data, and moving a step means redrawing it. Visio's Data Visualizer did generate diagrams from a table, but Microsoft retired the add-in in early 2026. Generating the diagram from the rows, and keeping it generated, is the part that makes the process maintainable.
What columns does my spreadsheet need?
Two are essential: a label for each step, and the row number of the step that follows it. Three more are worth having: a shape column so decisions and terminators render correctly, a branch-label column so each exit off a decision says which case it is, and an owner column that turns the flowchart into a swimlane diagram. Everything else (systems, timings, notes) can go in the comment on the step.
How do I handle a step that leads to more than one place?
Put both row numbers in the Line to cell, separated by a comma, and put the matching labels in Line text in the same order. That covers both decisions, where the branches are alternatives, and forks, where two things happen in parallel: a delivery producing both a goods receipt and an invoice, for instance. The order of the two lists has to match, because they are paired by position.
Will the layout be a mess if my process is complicated?
The routing is computed rather than drawn: edges are auto-routed around the boxes, and lane assignments place each step, so a twenty-step process across five lanes lays itself out. What produces a messy chart is not complexity but scope: a chart trying to cover two processes crosses lanes constantly. If it looks tangled, the usual fix is splitting the process, not moving boxes.
