How to create a cross-functional flowchart
How to create a cross-functional flowchart: choose the functions that genuinely hold the work, draw every crossing as a handoff, and show where the process leaves the company. Live example included.

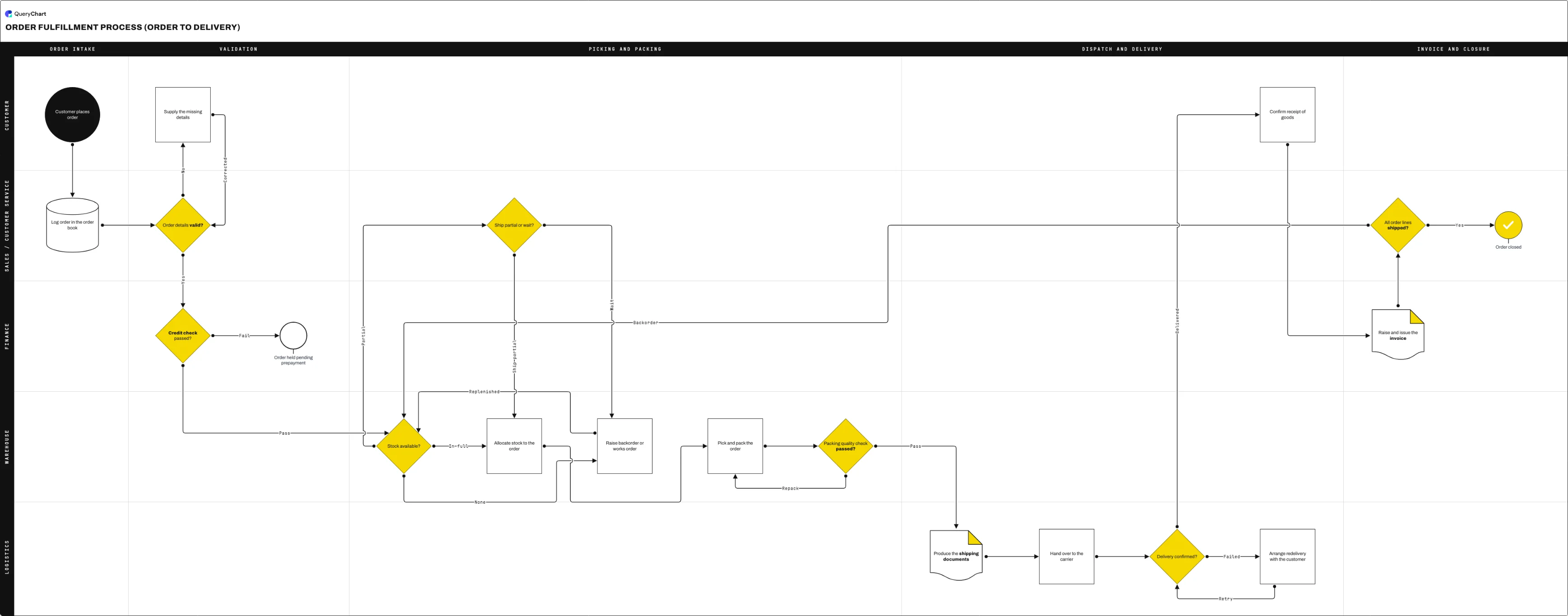

A worked example, stage by stage
Two functions, one crossing
The customer places an order and sales logs it. The validation decision already produces the first loop back into the customer's lane for missing details — the cheapest handoff in the chart, and the one most often left undrawn.
A gate in a different function
Finance runs the credit check. Sales cannot proceed and finance is not chasing, which is exactly the shape of a delay that neither function believes is theirs.
The warehouse takes over
Stock availability splits three ways — full, partial, none — and the partial decision goes back to sales, because whether to ship short is a customer conversation rather than a warehouse one. The pack quality check adds a rework loop inside the lane.
Out of the building and back
Logistics produces documents, hands to the carrier and manages a failed-delivery retry, then the customer confirms receipt. Three of these steps are outside your direct control; drawing them is how the cycle-time conversation stops being about the warehouse.
Closing the loop in finance
Invoice raised, then a decision on whether every line shipped — and if not, back to stock allocation. A cross-functional process rarely ends in the function that started it, and the final crossing is the one most likely to be missing from a written procedure.
How it works
List the functions that touch the work
Write down every function that performs a step, including customers, suppliers and carriers. Then merge anything that is really one accountable unit. Aim for four to six lanes; more than that and the crossings become impossible to trace visually.
Fix the boundaries before the middle
Name the event that starts the process and the state that ends it, and check that both sit inside the functions you listed. Cross-functional charts sprawl faster than any other kind, because every function has an opinion about where the process really begins.
Lay the steps out as rows and assign lanes
Type each step into a row, connect with the Line to column, then set the Vertical lane column to the function that performs it and the Horizontal lane to the phase. The layout follows from the lanes rather than from dragging boxes, so reassigning a step is a single cell edit.
Annotate every crossing
For each line that leaves one lane and enters another, record in the step's comment how the receiving function finds out: a system status change, an email, a shared queue, a daily report. Where the answer is "they check", you have found a queue with no owner.
Count the crossings and challenge them
Total the number of lane changes. A fifteen-step process crossing lanes nine times is not a diagram problem, it is a design problem — and the usual fix is to move a step rather than redraw it. Cross-functional charts are the only kind that make that count visible.
Validate with each function separately
Walk the chart with each lane owner on their own before showing it to everyone together. People correct their own lane freely and defend it in a group, so you get a more accurate chart and a much shorter meeting.
Frequently asked questions
What is a cross-functional flowchart?
A process flowchart divided into lanes, one per function or role, so that each step sits with whoever performs it and each crossing between lanes is a visible handoff. It is also called a deployment flowchart or, informally, a swimlane diagram. The purpose is not prettier documentation but a specific diagnostic: showing where work changes hands, because that is where most operational delay and most dropped work occurs.
How is it different from a swimlane diagram?
In practice they are the same thing, and the terms are used interchangeably. Where people draw a distinction it is one of emphasis: swimlane describes the notation, cross-functional describes the intent. If it matters in your organisation, use whichever term your audience already uses — arguing about it is a poor substitute for counting the handoffs.
Should suppliers and customers get their own lanes?
Yes, whenever the process waits on them. A credit check that stalls because a customer has not returned a form is part of your cycle time whether or not you drew it. Giving external parties a lane also makes visible how much of the elapsed time is genuinely outside your control, which changes where improvement effort is worth spending.
How many lanes is too many?
Past about six the crossings overlap enough that following a single path takes real effort, and the chart stops being usable in the meeting it was drawn for. That is a signal about the process rather than the diagram: either several lanes are one accountable unit, or the scope spans two processes that should be split at a handoff and cross-referenced.
