How to visualize a business process
How to visualize a business process: choose the view that answers your question (sequence, ownership, timing or exceptions) and build it from one source instead of drawing four diagrams.
Visualising a business process means choosing the view that answers the question being asked: sequence, ownership, decision logic, or where the work stalls.
The short version
- Ask what question the diagram has to answer before choosing a format.
- Sequence → flowchart. Ownership → swimlanes. Failure modes → decisions drawn to a conclusion.
- Timing belongs on the handoffs, not in a separate diagram.
- Keep one source and produce views from it; four diagrams become four truths.
- If a diagram needs a legend to explain its own legend, it is carrying too much.
Pick the view from the question
"Can we get a diagram of this?" is never really a request for a diagram. It is a request for an answer, and the useful first move is to find out which one: whether the sequence is right, who is accountable, where the time goes, or what happens when something fails. Each of those wants a different visualisation, and producing the wrong one is how organisations end up with a wall of diagrams nobody consults.
Sequence questions want a flowchart. Ownership questions want lanes. Exception questions want the decisions and their unhappy routes drawn to a conclusion. Timing questions want annotations on the handoffs rather than a new diagram at all. The mistake is to answer all four at once: a chart carrying sequence, owners, systems, timings and control references is technically complete and practically unreadable.
The good news is that these are views of one thing, not four documents. The example below is a quality control process (inspection through testing to release or rejection), and it carries a three-way inspection-point split, an out-of-specification investigation, and a material review board disposition with three outcomes. One chart, but you can read it for sequence, for ownership, or for where a batch can get stuck.
One chart, several readings

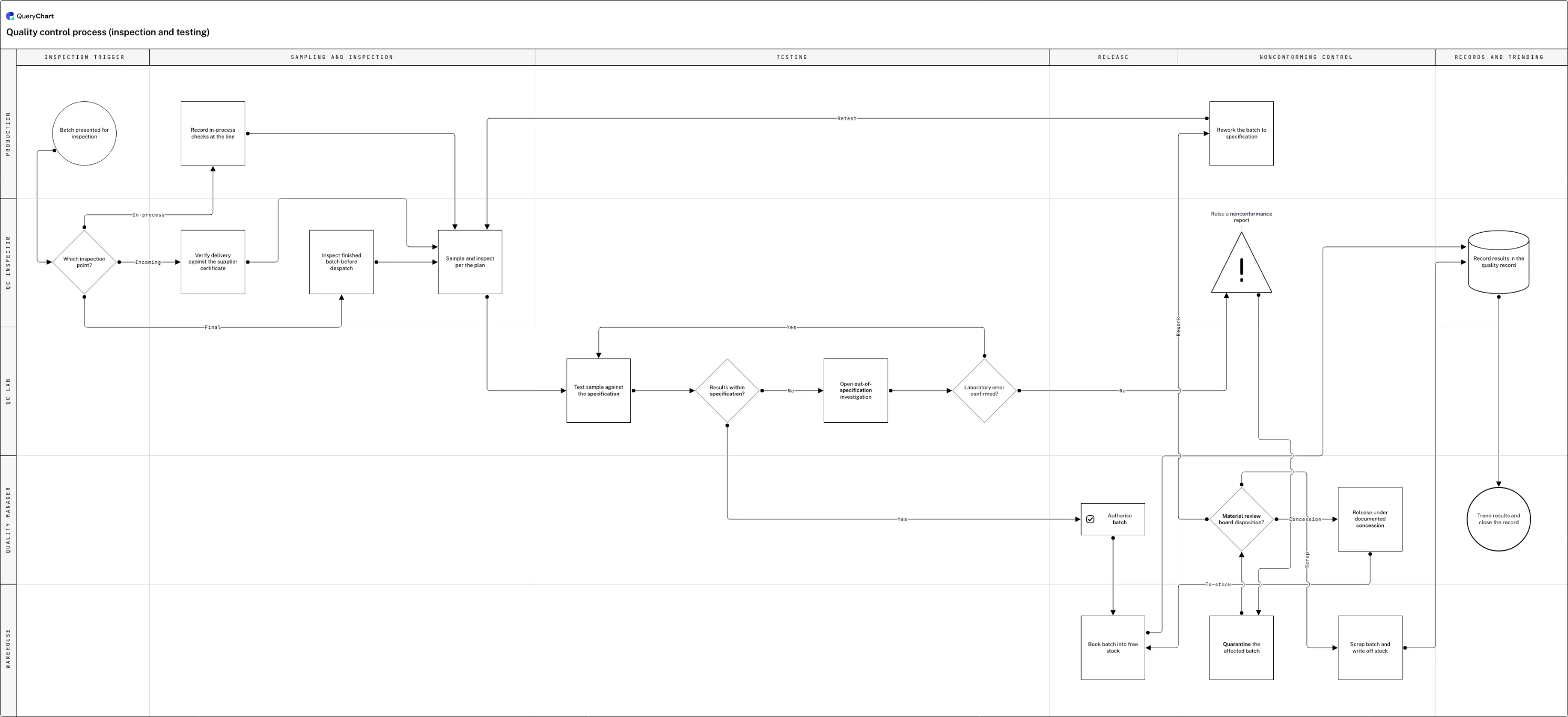

A quality control process. Read it for sequence, then for ownership, then for where a batch can stall.
Sequence: one entry, three routes in
Incoming, in-process and final inspection all converge on the same sampling step. Drawing three entry routes into one flow is more honest than three near-identical diagrams, and it makes the shared part obvious.
Ownership: who can release a batch
Inspection sits with QC, testing with the lab, release authorisation with the quality manager, and stock booking with the warehouse. Four lanes in five steps: this is the reading that answers "who signs".
Failure: where a batch actually stalls
Out-of-specification opens an investigation, a laboratory error routes back to retest, and a genuine failure raises a nonconformance and quarantines the batch. This is the reading that explains why despatch is late.
Outcomes: three ways out of quarantine
The material review board disposition splits into rework, concession or scrap, each with a different destination. A visualisation that shows only pass and fail hides the decision that costs the most money.
How it works
Write down the question first
One sentence: what will someone be able to answer after looking at this? "Where does an order spend its time?" and "who approves a batch release?" produce different diagrams, and asking the question first is what stops you producing both and satisfying neither.
Choose the smallest view that answers it
Sequence questions need no lanes. Ownership questions need lanes but not timings. Resist adding a dimension because the tool supports it: every extra layer costs the reader attention that the answer needed.
Build it as rows so the views are cheap
In QueryChart the chart is a table: steps, connections, shapes and two lane columns. Adding or removing the ownership dimension is a column edit, not a redraw, which is what makes producing a second view sensible rather than a project.
Put timing on the handoffs
Where the question is about duration, annotate the crossings between lanes rather than every step. Queue time between teams dominates work time in nearly every business process, and putting the numbers where the queues are makes that visible immediately.
Show the exceptions or say you have not
If you are deliberately drawing only the happy path (for a training deck, say), label it as such. An unlabelled happy-path diagram gets used later as though it were the process, usually by somebody deciding a headcount.
Publish one link, not five exports
Share the chart rather than pasting an image into a deck. Exported pictures are the mechanism by which four views become four versions, each frozen on the day someone needed it.
Mistakes to avoid
Answering four questions at once
A diagram carrying sequence, owners, systems, timings and control references is complete and unreadable. Split by question, from one source.
Diagrams as decoration
A process picture in a slide deck that nobody could act on is a stock photo with rectangles. If it does not answer a question, it does not need to exist.
Colour carrying meaning nobody was told
If red means something, say so on the chart. Colour conventions live in the author's head and die there.
Exports instead of links
The moment a diagram becomes a PNG in a deck it stops tracking reality, and it will still be circulating a year later.
Visualize your own process
Open the quality control example as your own chart, then cut it down to the view that answers your question.
